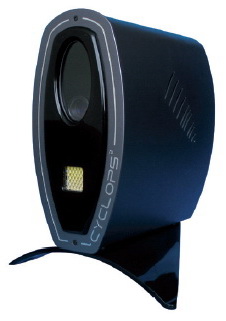

The Cyclops 3D Body Digitizer

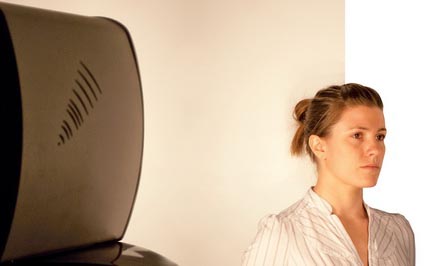

Digitizing a head in 3 dimensions can be simple, easy and affordable! The Cyclops 3D digitizer from the Creaform 3D Body Digitizer line-up offers great ease of use and produces a good quality 3D image in color that can be used in a wide range of applications.

Applications and Industries

The Cyclops 3D digitizer works fast and efficiently, and the 3D models it generates can be used in a great number of applications, such as:

3D stereo portraits
3D crystal engraving
3D visualisation
Multimedia
Virtual reality
Virtual try-on
Avatar design
And many others

Software

The acquisition software program PCS is supplied along with the Cyclops digitizer in order to ensure the acquisition of the 3D data and to visualize the 3D models. This software also offers laser crystal engraving functions.

Technical Specifications of the Cyclops
Dimensions 249 x 122 x 268 mm (9.8 x 4.8 x 10,6 in)
Field of view 680 mm x 510 mm (26.8 in x 20.1 in)
Depth of field 525 mm (20.7 in)
Resolution X, Y 0.7 mm (0.03 in)
Resolution Z 0.6 mm (0.02 in)
Stand-off distance 925 mm (36.4 in)
Reference distance 1100 mm (43.3 in)
Enhanced texture 3.2 megapixels
Geometry 800 000 points
Time of acquisition 0.6 seconds
File formats* .OBJ, .FBX, .DXF, .STL, .VRML, .LWO, .MAYA, .HRC, .3DS
*: The file formats created by the Cyclops may be converted to standard formats using the EM software program (sold separately)
