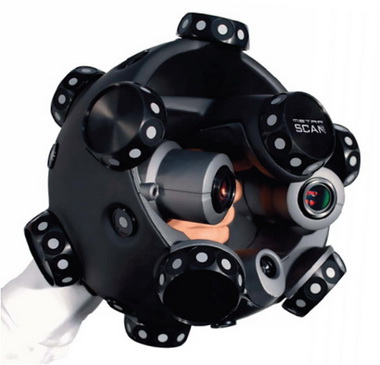

| MetraSCAN 3D optical CMM scanner
|
|
The arm-free handheld MetraSCAN 3D optical CMM scanning systems are the most accurate scanning and probing solutions on the market, whether in lab or on the shop floor. Combined with the HandyPROBE, this complete and powerful solution increases the reliability, speed and versatility of the measurement process, whether for metrology or large-scale reverse engineering applications.
The MetraSCAN 3D scanners make it possible to easily and dynamically extend the measurement volume with no loss of accuracy. Compared to other 3D scanners on articulated arms, they allow total freedom of movement, which translates into increased productivity and quality.
MetraSCAN 70
The MetraSCAN 70 offers increased resolution. It is ideal for projects where geometrical feature definition is key, such as sheet metal and tooling inspection.
MetraSCAN 210
Because it features extended scanning surface, the MetraSCAN 210 offers increased measurement speed with equal accuracy. Its increased stand-off and depth of field make for enhanced scanning flexibility. It is ideal for large surface metrology and large-scale reverse engineering.
The C-Track 780 dual-camera sensor is fitted with high-quality optics and special lighting, enabling it to measure all reflectors within its operating space. In addition to tracking the reference model of the whole system, the C-Track 780 ensures the accurate localization of the MetraSCAN, and performs continuous image acquisition and transmission, lighting of reflectors, management of exchanges with the computer and storage of sensor parameters.
The MetraSCAN 3D optical CMM 3D scanners work with the C-Track dual-camera sensor. It is also possible to network the MetraSCAN scanners with 2 or 4 C-Tracks and benefit from the C-Link functionality, which drastically increases the measurement speed and ease-of-use of the system. |
|
