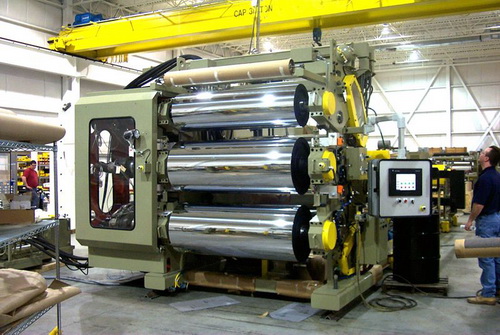

| Marshall and Williams Sheetline Systems
|
|
Founded in 1920, Marshall and Williams Plastics is a recognized global leader and innovator of world class plastic sheet and film processing equipment. Marshall and Williams has the industry?? most complete range of systems and services for downstream flat sheet and film processing. These solutions help to simplify the most complex sheet production demands. Standard capabilties of Sheetline Systems include:
Vertical, horizontal & inclined roll configurations
Precise temperature control using circulating water or thermal fluid
Tilt stack roll configurations that operate from 0? - 90?
Independent roll drives for precision control
Simple and comprehensive operator?? control interface
Roll designs and surface treatments optimized to eliminate sheet defects
Specifications
System Advantages
Standard and custom engineered designs
Modular system flexibility
Precise controls and drive coordination
Unique gap control options
Quick roll changes
Convenient and comprehensive controls
Proprietary process simulation software for thermal analysis
Flexibility to meet customer specific requirements
Engineered solutions based on proven performance
Innovative designs for technology advancement
Available Options
Hydraulic or pneumatic roll actuation
Auxiliary cooling rolls
Automated roll gap adjustment
Independent or combined drives and temperature control
Direct drive, chain drive, or gear driven rolls
Specialty inline coatings
Can be integrated with downstream winders, thermoformers, or sheeters
Features
Custom engineered solutions
Designed specifically for your application
Custom roll surface coatings
Precise gap control
Heat transfer systems designed for your specific application
AC Vector drives
Touch screen HMI
Benefits
Solves your unique production requirements
Flexible and tailored designs
Optimized product quality and profitability
Meets space and budget requirements
Ensures highest productivity rates
Anti-stick, anti-scratch, improved traction etc.
Uniform and repeatable sheet thickness control
Optimized in size, flow rate, and cooling requirements
Very precise speed control of individual rolls
Ease of operation, operator training, recipe implementation & control
Roll Loads up to 2000 pli
Output up to 5 tons/hr
Line Speed up to 650 fpm |
|
