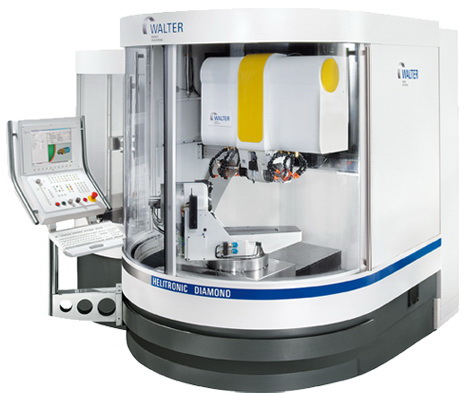

| Helitronic Diamond
|
|
With its Two-in-One concept, the Helitronic Diamond opens the door to the future market of PCD tools specifically for metal machining. Eroding of PCD and conventional grinding on ONE machine according to the motto: Eroding where necessary - Grinding where possible. And with surface qualities with RA up to 0.1 ?m.
Machine base:
Mineral casting
Drives:
Linear drives
Hollow shaft motor (750 rpm)
Motor output:
30 KW/10,000 rpm
Spindle diameter: 100mm/HSK50
Coolant device:
On request
Control system:
FANUC 310i
Standard software:
P1, P2, P3, 51, 52, 18, ToolStudio
Max. wheel /electrode diameter:
200 mm
Complete machining D/L:
320 mm (400 mm) / 300 mm
Machining length, perimeter:
370 mm
Automatic fire extinguishing system |
|
