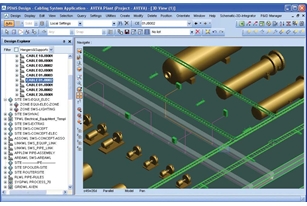

| AVEVA Cable Design
|
|
Automated cable routing, advanced checking, comprehensive reporting & production documentation
With comprehensive electrical catalogues and efficient 3D design of cableways and routing, AVEVA Cable Design streamlines the entire cable design process.
AVEVA Cable Design runs in the AVEVA 3D design environment and has access to all its database and functional capabilities.
Extensive data set
AVEVA Cable Design provides a sample electrical catalogue, containing attribute information that permits accurate Weight, Centre of Gravity and Material Take Off reports.
Design reuse
Reuse cables created in single-line cabling diagrams using AVEVA Instrumentation, AVEVA Diagrams or AVEVA P&ID.
Import cable schedules in Microsoft Excel or .CSV formats.
Design rules ensure quality
Routing rules control the appropriate selection of cableways and their maximum fill levels, and avoid potential cable interference problems.
Automatically check compatibility of the cable with the function of the tray, cable attributes, cable connectivity and penetration attributes.
Cable tray fill levels are displayed visually.
3D integration
Sharing the common project database enables efficient 3D design and easy cable rerouting and length updates when the 3D layout changes.
|
|
