| Light Beam Sintering (LBS) 45XE
|
|
Light Beam Sintering (LBS) is a non-contact, photonic sintering technique that is applied to printed electronic circuits on "low temperature" substrates such as Polycarbonate (PC). Each sintering head consists of a specially selected light source with integrated air-cooled reflector and lens system. The projected light beam (tuned to the absorption wavelength of the printed media) is focussed on the printed trace where local heating and sintering takes place. The heat distribution is precise enough to sinter the printed structure whilst leaving the peripheral area of the substrate unaffected.

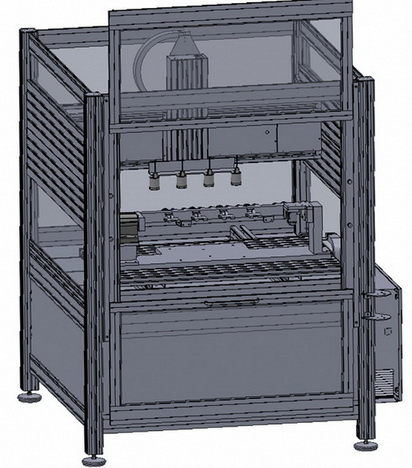

The LBS 45X E is a low cost, high throughput system for rapidly processing 3D Printed Electronic structures. With up to 4 LBS heads and 5 axes of simultaneous motion, parallel processing of multiple components is achieved. LBS technology can also be integrated in the AJ15X RP systems. |
|
