Home > Industry Automation > Frequency converter > SK 180E - economical decentralised frequency inverter

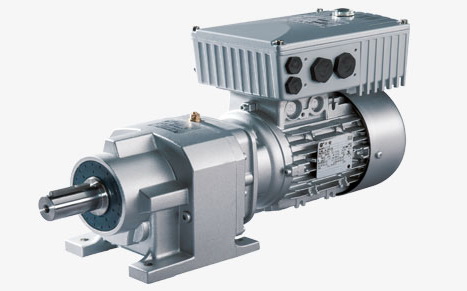

Getriebebau NORD GmbH & Co. KG - NORD Drivesystems Company  |  Products  |  News  |  Contact Us SK 180E - economical decentralised frequency inverter Model: SK 180E The SK 180E is the answer for all applications in the lower power range, where the main task is speed control. Tried-and-tested NORD know-how is used, so that the proven sensorless current vector control ensures an optimum voltage/frequency ratio at all times.The SK 180E achieves significant advantages for the EMC classification. Because of this, a motor-mounted frequency inverter with an integrated mains filter can even be used in a residential environment (Class C1). Features and Characteristics Efficient decentralised frequency inverter for simple speed control applications Motor or wall-mounting IP55, (optional IP66) Available power range (Size I)1 ~ / 3~ 200 … 240V from 0.25 kW to 0.55 kW3~ 380 … 480V from 0.25 kW to 1.1 kW Integrated mains filter (EMC Class C1 / C2) 2 analog inputs 3 digital inputs 2 digital outputs Temperature sensor input (TF+/TF-) RS232/RS485 interface via RJ12 plug Approved for residential areas (motor-mounted version) Can be used with normal plug sockets Related Products Hi-Performance Low-noise Mini Vector Inverter Qma Electric (Shanghai) Co., Ltd Q-5000 SERIES Hi-Performance Low-noise Mini Vector Inverter is a new-type mini-AC inverter but packed with high performance features for induction motors ... Inverter Special for Elevator and Escalator Qma Electric (Shanghai) Co., Ltd Q-7000 series of brilliant inverters for operation of elevators and escalators are designed to have a lot of exclusive features including Q-7000-EC especially ... Inverter Special for Blower and Water Pump Qma Electric (Shanghai) Co., Ltd Features Square torque curve special for blower and water pump Adjustable V/F operating mode New-generation of IGBT application, high switching frequency ... High Performance Vector Inverter for General Purpose Qma Electric (Shanghai) Co., Ltd Q9000 Series is a kind of high performance universal vector control inverter. Current vector technology and advanced modern control theory are used to ...
