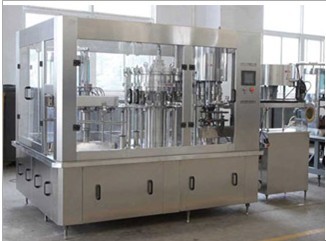

Carbonated soft drink filling machine
Model: DXGF 18-18-6
|
|
Interior structure
This machine is suitable for the production of PET bottled carbonated drink (carbonated beverage), like Coca Cola, FANTA, Sprite and carbonated mineral water, etc.. It has following features:
1. All the parts directly contacting with material like filling cylinder and filling valve are made from quality stainless steel or innoxious material. So it accords with the standard of food sanitation.
2. The seal parts are made from thermal -resistant rubber, which meets the need of disinfection in high temperature.
3. Adopt PLC controller. The whole process from bottle entering into machine to finishing packing is controlled by transducer. So it is easy for user to adjust the equipment and it meets different technical requirements.
4. Adopt isotonic filling principle and popular spring valve, which guarantees drink''s quality.
5. Adopt advanced magnetic centrifugal adjustment moment device, which guarantees sealing quality.
6. The primary electric components and pneumatic components introduce international famous products, such as Mitsubishi, Schneider, Omron and so on.
Technical Parameter
Model DXGF18-18-6 DXGF24-24-8 DXGF32-32-10 DXGF40-40-10 DXGF50-50-12
Washing/filling/capping heads 18-18-6 24-24-8 32-32-10 40-40-10 50-50-12
Capacity
(BPH) 3000-4000 5000-6000 8000 12000 15000
Can bottles type PET bottle: ø50-ø100 H=170 330-1500ml PET bottle: ø50-ø110 H=160-340
Filling pressure
(MPa) 0.15-0.35 0.15-0.35 0.2-0.4 0.2-0.4 0.2-0.4
Motor power(kw) 2.8 3.6 6.0 7.5 11
Pressure of washing bottle(mpa) 0.2-0.25
Dimension (mm) 2600?1920
?2550 3100?2200
?2800 3850?3000
?2850 4850?3800
?2750 5750?3550
?2750
Weight(kg) 3650 4800 6800 8650 10500
|
|
