Home > Power & Electrical Equipment > Generator & Alternator > WP58484 Slip Ring

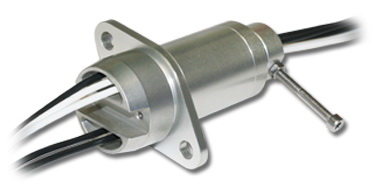

Moog Inc. Company  |  Products  |  News  |  Contact Us WP58484 Slip Ring IP65 SEALED SLIP RING FOR HARSH ENVIRONMENTS A slip ring is used in electromechanical systems to allow full, unimpeded rotation of electrical power and signal circuits. The WP58484 provides both power and signal contacts in a stainless steel housing that is sealed to prevent fluid and dust intrusion to IP65 level. This slip ring is ideally suited for transfer of power and signal down the tower in small wind turbine applications. Features 2 signal and 3 power at 18 amps, 600 VAC Ball bearings for extended life Stainless steel housing Convenient mounting flange on stator housing Drive pin on rotor to alleviate stress on lead wires Gold-on-gold contacts Signal lines fully compatible with customary signal and protocol communications Compact size Benefits IP65 sealing Compact Rugged Other options available on request WP58484 Specifications Number of Circuits2 rings at 2 amps and 3 rings at 18 ampsContact TypeMultiple gold brushes on gold ringsCable LengthRotor - 140 mm (all circuits) Stator - 580 mm (all circuits)VoltageRated voltageOperating Temperature-30ºC to +60ºCCurrent Rating2 amp signal; 18 amp powerRPM Max100Dielectric Strength1000 VAC < 1 mAInsulation Resistance200 MohmsEnvironmentalIP 65 Related Products WP6807 Slip Ring Moog Inc. WIND TURBINE SLIP RING The WP6807 slip ring provides multiple signals and power for the lower power requirements of the hydraulic / electric designs. ... Moog Blade Sensing Systems Moog Inc. PROVEN TECHNOLOGY FOR ADVANCED TURBINE CONTROL The current trend in wind turbine development is towards higher power and lower cost per MW designs. ... Pitch Servo Drives - PITCHmaster II+ Moog Inc. A SERVO DRIVE FOR THE NEXT GENERATION The exceptionally rugged Moog PITCHmaster® II+ Pitch Servo Drive was developed specifically for the harsh ... Pitch Motors Moog Inc. SYNCHRONOUS MOTORS FOR HIGH EFFICIENCY AND RELIABILITY Moog pitch motors were developed for the demanding requirements of wind turbines operating under ... Power Plant Engines MAN Diesel & Turbo SE MAN Diesel & Turbo's activities in the power generation and cogeneration sectors are based on a well established range of diesel engines and a rapidly ...
