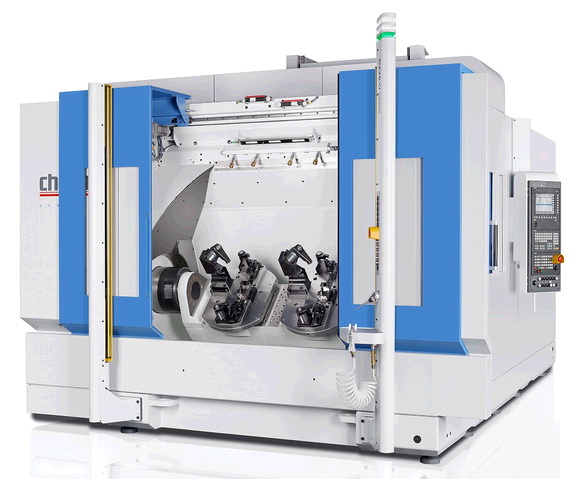

| CHIRON series 26 Machining Centre
|
|

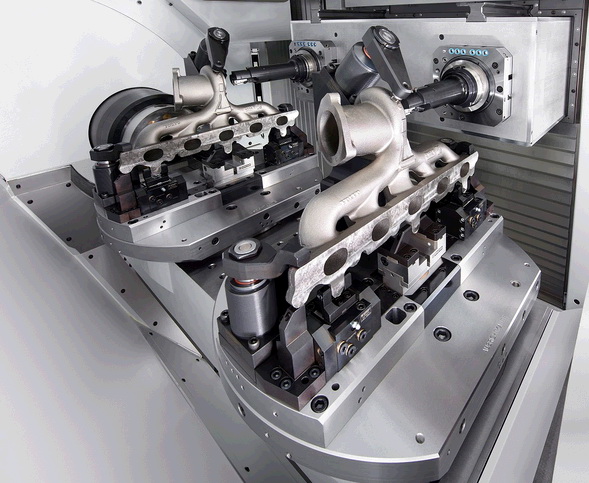

| The CHIRON series 26 offers the optimal foundation for highly productive, powerful cutting and machining results. Whether your focus is on flexible singleunit production, or high volume precision manufacturing - due to its modular design and numerous configuration possibilities, every series 26 basic machine can be assembled into a perfect individualized solution. The horizontal series 26 precision machining centers are available as single and twin-spindle machines, and have enormous reserves for powerful milling performance. In addition, the trunnion workpiece changing device promotes increased productivity by allowing the seamless loading and unloading of workpieces during machining.
Process advantages
Maximum path [X-Y-Z] 950-630-600 mm
Maximum electrical power 81 kW (25% ED)
Spindles / distance DZ 2 / 600 or 900 mm
Maximum spindle speed 16.000 rpm
Maximum torque 390 Nm
Chip-to-chip time starting from 2.7 s
Maximum axis acceleration [X-Y-Z] 12-17-20 m/s2
Rapid feed as fast as 90 m/min
Max. number of tools 2 x 45
Tool taper HSK 63 / HSK 100
Maximum tool weight 20 kg
Maximum tool diameter 250 mm
Maximum tool length 425 mm
Automatic workpiece change from 3,5 s |
|
