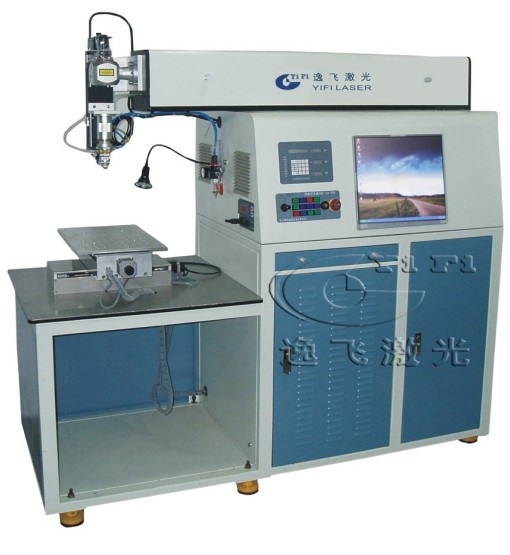

lamp pumped laser soldering machine
Model: EFE-LF-450S
|
|
Application:It is widely applied to aviation, machinery, electronics, communications, power, chemical, auto manufacturing , colleges, scientific research institutes and other industries.
Welding of auto parts (hydraulic tappet, gasoline filter, auto-exhaust sensor, solenoid valve and stator for starting motor).
Seal welding of lithium battery (cell phone battery, power battery)
Metallurgical industry (welding of silicon steel sheet)
Welding of sensors for military industry and engine vanes.
Precision spot welding and seal welding of electronic components
Electrical appliance(welding of silicon-steel sheets, rotor of air conditioner motor, leakage protector and magnetic head of tape recorder)
Technical Parameters:
model EFE-LF-350S EFE-LF-450S EFE-LF-550S
wavelength 1064nm
Pulse width 0.3ms~20ms
Pulse frequency 0.1~150Hz
Rated output power 350W 450W 550W
Max output power 420W 570W 670W
Max single pulse energy 90J 100J 110J
Beam divergence angle <=6mrad
Facular diameter >=0.3mm
Stability of energy <=±1.5% current negative feedback
<=±1% energy negative feedback
Dimension 1780mmX700mmX1550mm
Continuous working hours 24h |
|
