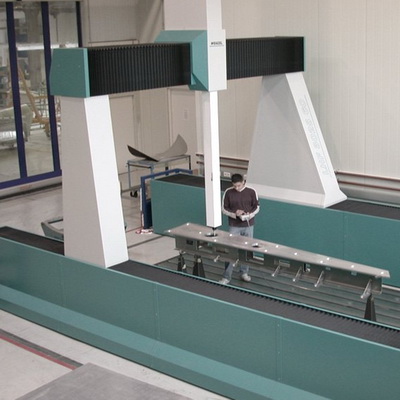

3D coordinate measuring machine LHF

Bridge-type CMM for precise measurements of large workpieces

When it is all about the accurate measurement of large gears or other high precision parts offers the LHF Gear high flexibility concerning ergonomics of the measuring volume. The at-grade design realizes excellent free moving space and easy loading of the measuring volume.

Bridge type measuring machine for gear metrology

Just as the 3D coordinate measuring machines of the LH Gear series is the LHF Gear equipped with a rotary table for the precise 4-axes-measurements of gearings. So gears and other rotationally symmetrical parts with a diameter greater than 4000 mm can be measured.

Geometry measurement with a gear tester

Additionally to the functionality of a gear measuring machine prismatic parts can be measured fast, precise and fully automated. With the proven measuring software Metrosoft CM measuring programs can be created and measurement report generated. The results are stored in a database and can be recalled anytime and be used for statistical evaluations. This combination allows not only the measurement of gears but of the measurement of corresponding gear housings as well.

Innovative sensor technology for gear metrology

The measuring machines of the LHF Gear series are equipped with Renishaw scanning probes. Depending on the requirements either a SP24, a SP600M or a SP80H is used. With these probing systems very small surface details can precisely be measured.
The LHF Gear gear testers can be equipped with fully automated change racks, so the optimal probe configuration can easily be used for every measuring task. The change racks FCR25, SCR600 and SCP80 allow the fully automated and reproducible change between different styli configurations. So diverse gearings with different modules and prismatic parts can easily and fast be measured in one measurement procedure.

Optimized CNC controller for accurate measurement according to gearing principles

To completely fulfill the demanding requirements of gear metrology WENZEL developed the CNC control Geco. It guarantees an optimal 4-axes-measurement and precise scanning. For geometrically precise machine movement the machine compensation is carried out in real time and the wobbling of the part is compensated in real time.

Features and Benefits

Touch Probe & Scanning Applications

Standard/Premium/Premium Select model available for different accuracy requirements

Active dynamic thermal compensation on Premium/Premium Select models are available

Impala Granite CMM structure for optimum thermal stability

Wide cross-section ceramic Z ram mounted in offset air bearings for maximum rigidity when using long extension bars and off-set loads

Optional rotary table option for measurement of Gears and other cylindrical parts

Extendable Y axis for future increase in measuring volume

Bellows covers fitted to both X and Y axis for dirt protection
