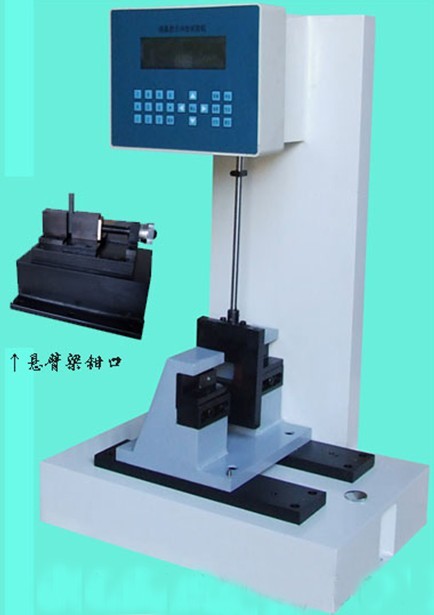

Simple Beam Impact Testing Machine/Plastic Impact Tester/Izod Impact Tester
Model: XJ-25D

Specification
Simple beam impact tester
1. Impact speed: 2.9m/s, 3.8m/s ;
2. Pendulum energy: 1J, 2J, 4J, 5J, 7.5J, 15J, 25J.
3. The distance between pendulum center and sample center: 221mm, 380mm
4. Pendulum angle: 160º
5. Pendulum torque: Pd1=0.5155N.m Pd2=1.0311N.m
Pd4=2.0622N.m Pd5=2.5777N.m
Pd7.5=3.8662N.m Pd15=7.7324N.m
Pd25=12.8888N.m
6. Clamp mouth supporting spacing: 40mm, 60mm, 70mm, 95mm
7. Supporting blade fillet radius: R=1mm
8. Impact blade Angle: 30º
9. Impact blade fillet radius: R=2mm
10. Sample type size, supporting spacing (Unit: mm)

Sample Type Length Width Thickness Supporting Space Clamp
1 80±2 10±0.5 4±0.2 60 A
2 55(50)±1 6±0.2 4±0.2 40 B
3 120±2 15±0.5 10±0.5 70 C
4 125±2 13±0.5 13±0.5 95 D
Cantilever Beam Impact Tester
1, Impact Speed: 3.5m/s ;
2, Pendulum Energy: 1J, 2.75J, 5.5J, 11J, 22J;
3, Pendulum Angle: 160º;
4, The distance between pendulum center and sample center: 322mm
5, Pendulum torque: Pd1=0.5155N.m Pd2.75=1.4177N.m
Pd5.5=2.8355N.m Pd11=5.6711N.m
Pd22=11.3419N.m
6, The distance between pendulum striking edge and upper plane of jaw: 22mm,
7, Impact blade fillet radius: R=0.8mm
8, Sample meet the standard: GB1843 - 80 and ISO180 - 82
