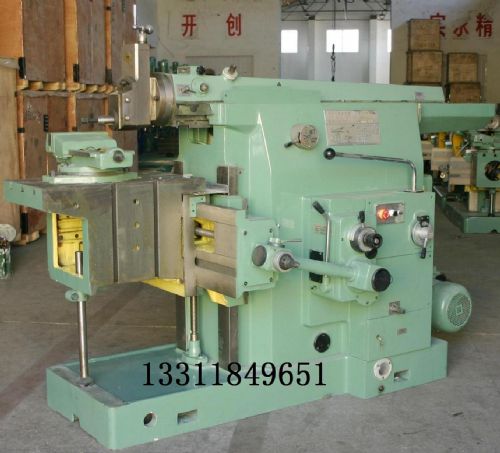

shaping machine BH6070
Model: BH6070
|
|
| This machine is suitablle for shaping plane and formed surfaces. High productivity can be obtained for shaping plane surface, T-slots and dovetail slots, etc, on narrow and long workpieces. The ram mechanism of this machine adopts the guide unit with torsion-spring internally fixed. During the ram movement the cutting tool can be adjusted to an arbitrary position. The total closed cam-ratchet unit is employed in the feed mechanism and rapid travel mechanism of the table featuring change of feed amounts without stopping the machine during cutting. A disk-type overload safety unit is used. Owing to the adoption of swivel device with cam-curve groove different speeds can be selected arbitrarily. Specifications Max. shaping length 700 mm Max. distance from lower edge of ram to table 420 mm Max. travel of table Horiazontal 630 mm Vertical 320 mm Rapid travel of table Horiazontal 0.75 m/min Vertical 0.34 m/min Max. vertical travel of tool head 125 mm Frequency of ram strokes 11,20,38,52,72, 100 times/min Table feed per ram stroke Pawl riding over 1 ratchet tooth Horiazontal 0.07 mm Vertical 0.15 mm Pawl riding over 10 ratchet tooth Horiazontal 0.68 mm Vertical 1.5 mm Tool head (down) 0-0.4 mm Tool lifting (linear speed) <20 m/min Motor 4kW.960 r/min Vice measurements (L? W? Max. opening) 240?64?215 mm Overall dimensions( L? W? H) 2480?1400? 1780 mm Packing size(L? W? H) Export 2620?1620?1720 mm Import 2620?1650?1720 mm Net Weight 2700 kg Gross Weight 3300 kg |
|
| Related Products |
|  Shaping machine
Shanghai WuDong Machine Tool Co.,LTD
Shaping machine:
This machines is designed for shaping plane and formed surfaces. If used for shaping plane surfaces, T-slots and dovetail slots, etc. ... |
|
|
|
|
