BinMaster Heavy Duty Capacitance Probe for High Temperatures

10/23/2015

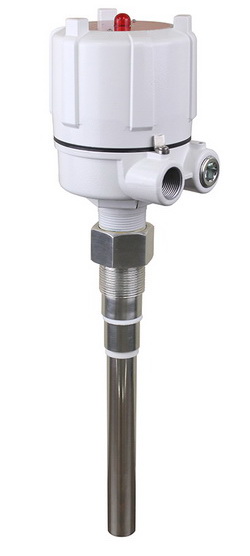

Lincoln, Nebraska-October 21, 2015 - The new BinMaster HD probe is a heavy duty, stainless steel probe that can be attached to either the PROCAP I or PROCAP II capacitance probes.

This rugged probe comes in a standard 8' length and features a PRO-Shield to guard against false readings from material buildup on the probe.

The wide diameter of the probe increases the surface area for maximum sensitivity and performance.

It is suitable for use in temperatures up to 500oF (260oC), making it appropriate for challenging applications such as fly ash or clinker. Because the probe is solid and 1' in diameter, it is resistant to bending and extremely durable.

It can be used for low or high level detection in heavy materials such as coal, aggregates, grains, or other materials with a high bulk density.

Like all BinMaster capacitance probes, the heavy-duty (HD) probe offers fail-safe operation and 'Quick-Set' calibration.

BinMaster capacitance probes provide interference-free operation - working far below the RF level of 9 KHz at just 6 KHz - and will not interfere with two-way radios or other equipment operating in the radio spectrum.

The PROCAP I and PROCAP II capacitance probes feature a triple-thread, screw-off cover that allows easy access to internal components and an FDA-recognized powder coat finish.

The housing also has dual conduit entries to simplify wiring and installation.

A dual time delay feature allows the user to set flexible time delays up to 30 seconds for covered and uncovered conditions.
